These are examples of work done for Munzing Structural Engineering. As the primary draftsperson for about one year in an entirely shared office space, I learned a lot about the buildings, drawings, coordination and permit application processes of a wide range of architects around Portland, OR. This included a few major exciting (even revolutionary in the case of Carbon 12) projects, amongst many other medium to small scale buildings, seismic retrofits, and countless residential remodels.


http://evanstravers.com/files/gimgs/th-46_16-11-29 AINSWORTH THIRD FLOOR.jpg

Ainsworth Ave. Third Floor Framing Plan - Weachter Architecture


http://evanstravers.com/files/gimgs/th-46_S3_1-S3_1.png

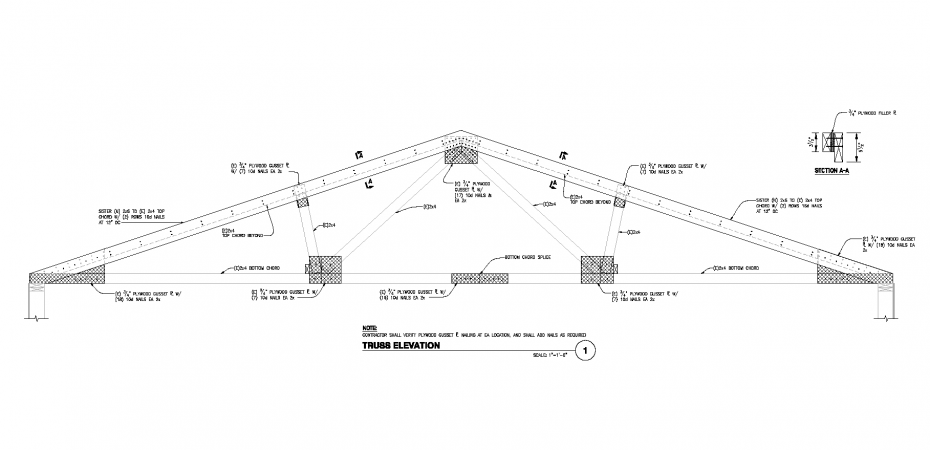

Residential Roof Truss Elevation


http://evanstravers.com/files/gimgs/th-46_S5_3-Model.jpg

Typical Retaining Wall &
Floor Truss Detail


http://evanstravers.com/files/gimgs/th-46_S5_3_v2.jpg

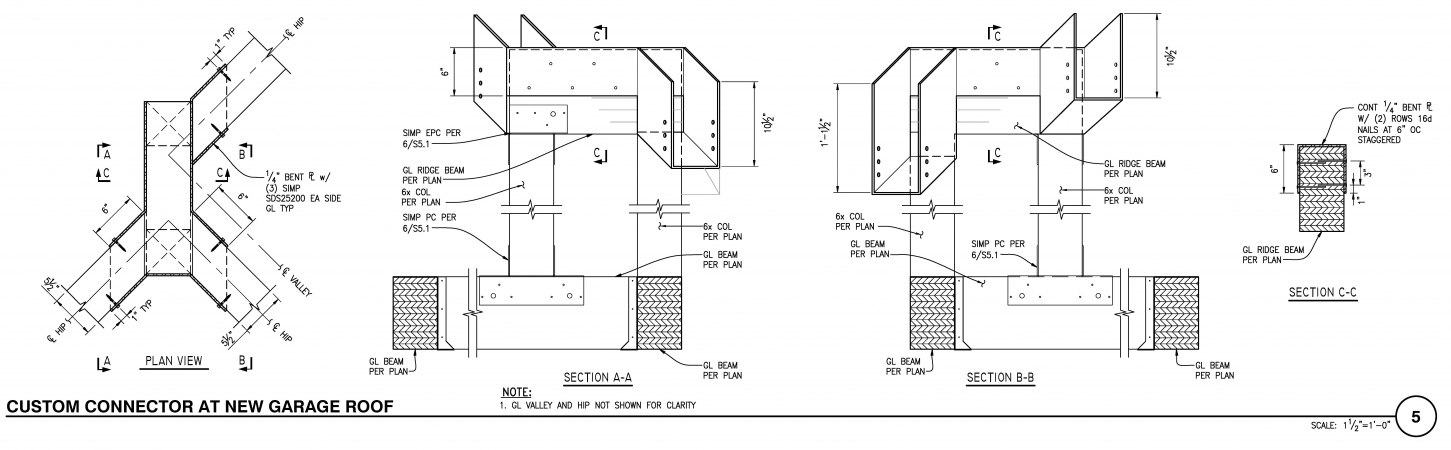

Custom Roof Beam Bucket Connection
